Prototyping is an essential phase in product development. It allows designers and engineers to test concepts, refine designs, and identify potential flaws before committing to full-scale production. Two popular methods for creating prototypes are CNC machining and 3D printing. Both offer unique advantages and limitations; choosing between them is crucial for any project.
In this blog post, we’ll compare CNC machining and 3D printing for prototyping. We’ll analyze key factors like speed, cost, material options, and surface finish to help you determine which method best suits your specific prototyping needs and budget. Whether you’re developing a new product, iterating on an existing design, or simply exploring the possibilities, understanding the nuances of these prototyping techniques is essential for making informed decisions.
Head-to-Head Comparison
Speed:
- CNC Machining: CNC machining can produce prototypes relatively quickly, especially for simpler designs. However, complex geometries and harder materials may increase machining time. The setup process, including programming and tooling, can also add to the overall lead time.
- 3D Printing: The speed of 3D printing varies greatly depending on the technology. Fused Deposition Modeling (FDM) is generally the slowest, while Stereolithography (SLA) and Selective Laser Sintering (SLS) can be significantly faster. However, print time increases with the size and complexity of the model.
Comparison: 3D printing (especially SLA or SLS) can often be faster than CNC machining for simpler designs and smaller quantities. However, CNC machining might offer a quicker turnaround for larger, more complex prototypes or those requiring specific materials.

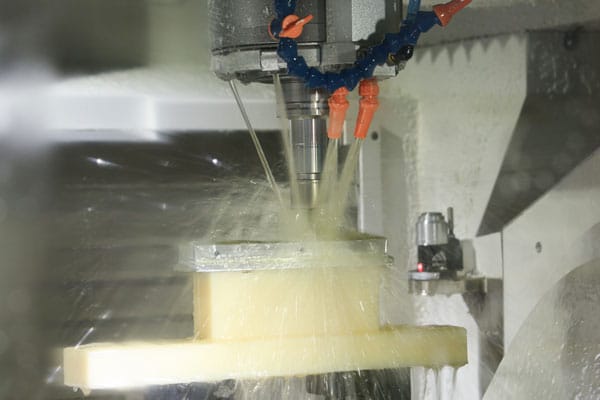

CNC machines*
Cost:
- CNC Machining: The cost of CNC machining prototypes is influenced by several factors, including machine time, material costs, and tooling expenses (especially for complex parts). However, the cost per part generally decreases as the quantity increases.
- 3D Printing: 3D printing costs depend on the printer type, material used, and any post-processing required. While the upfront cost of a 3D printer might be high, the cost per part is relatively low, especially for smaller and less complex designs.
Comparison: 3D printing is often more cost-effective for a small number of simple prototypes. However, CNC machining may be more economical for larger batches or complex parts where tooling costs can be amortized over multiple units.
Material Options:
- CNC Machining: CNC machining is compatible with various materials, including metals (aluminium, steel, titanium, etc.), plastics (ABS, POM, etc.), and wood. It’s particularly well-suited for machining engineering-grade materials that require specific mechanical properties. thermoplastics (PLA, ABS, PETG, etc.), resins (for SLA/DLP), and even metals (for
- 3D Printing: 3D printing offers a growing variety of materials, including various SLS/SLM). However, the material properties of 3D-printed parts may not always match those of traditionally manufactured parts.
Comparison: CNC machining generally offers a wider range of engineering-grade materials suitable for functional prototyping. While 3D printing materials are expanding, they may be limited to applications that require specific mechanical properties.
Surface Finish:
- CNC Machining: CNC machining can produce high-quality surface finishes, often requiring minimal post-processing. However, the finish depends on the tooling, machine capabilities, and the chosen material.
- 3D Printing: Surface finish varies significantly depending on the 3D printing technology. FDM often leaves visible layer lines, while SLA and SLS can produce smoother surfaces. Post-processing techniques like sanding and polishing can improve the finish for all 3D printed parts.
Comparison: CNC machining typically produces superior surface finishes straight out of the machine, but 3D printing can achieve comparable results with appropriate post-processing. The choice depends on the desired level of finish and the resources available for post-processing.
Choosing the Right Method
Ultimately, the choice between CNC machining and 3D printing for prototyping comes down to your specific project needs. If speed and cost-effectiveness are top priorities for simpler designs, 3D printing may be the way to go. However, CNC machining might be the better choice if you need prototypes made from engineering-grade materials with complex geometries or a high-quality surface finish.
Conclusion
CNC machining and 3D printing are valuable tools in the prototyping process, each with strengths and weaknesses. There’s no one-size-fits-all answer, and the best choice will depend on factors like budget, timeline, material requirements, and desired surface finish. Carefully consider your project’s unique needs and constraints to determine which method will best help you bring your product to life.
